Evaluation of Commercially Available Viral Transport Medium (VTM) for SARS-CoV-2 Inactivation and Use in Point-of-Care (POC) Testing


Critical to facilitating SARS-CoV-2 point-of-care (POC) testing is assurance that viruses present in specimens are inactivated onsite prior to processing. Here, we conducted experiments to determine the virucidal activity of commercially available Viral Transport Mediums (VTMs) to inactivate SARS-CoV-2. Independent testing methods for viral inactivation testing were applied, including a previously described World Health Organization (WHO) protocol, in addition to a buffer exchange method where the virus is physically separated from the VTM post exposure. The latter method enables sensitive detection of viral viability at higher viral titre when incubated with VTM. We demonstrate that VTM formulations, Primestore® Molecular Transport Medium (MTM) and COPAN eNAT™ completely inactivate high-titre SARS-CoV-2 virus (>1 × 107 copies/mL) and are compatible with POC processing. Furthermore, full viral inactivation was rapidly achieved in as little as 2 min of VTM exposure. We conclude that adding certain VTM formulations as a first step post specimen collection will render SARS-CoV-2 non-infectious for transport, or for further in-field POC molecular testing using rapid turnaround GeneXpert platforms or equivalent.


The current method to detect the presence of SARS-CoV-2 virus during infection is reverse transcription polymerase chain reaction (RT-PCR), a molecular diagnostic testing technique, which detects the virus genetic material from respiratory samples. The World Health Organization (WHO) recommends that any testing for the presence of SARS-CoV-2 should be performed in appropriately equipped laboratories [1,2]. However, in March 2020, the Xpert® Xpress SARS-CoV-2 assay [3] was approved by the regulatory bodies United States Food and Drug Administration (United States of America) and Therapeutic Goods Administration (Australia), enabling RT-PCR in the laboratory and point-of-care (POC) in decentralized settings [4]. The Xpert® Xpress SARS-CoV-2 assay has similar accuracy to other RT-PCR assays but provides a result in 45 min or less using an early assay termination feature if a sample is positive, and is, therefore, able to facilitate timelier clinical and public health responses. Moreover, POC testing also provides an important opportunity to expand validated testing methods in low-and-middle-income countries (LMICs) where there is limited laboratory infrastructure [5], and also in remote areas of high-income countries where there are significant distances to city-based laboratories, such as Aboriginal communities in remote locations throughout Australia.

The WHO recommends that initial processing (before inactivation) of respiratory specimens should take place in a biological safety level (BSL2) cabinet (WHO laboratory safety manual 3rd edition; www.who.int/publications-detail/laboratory-biosafety-guidance-related-to-coronavirus- disease-(Covid-19)). However, more recently the guidance has extended to supporting POC testing platforms such as the   GeneXpert,   with   similar   advice   available   from   the   Centre for Disease Control and Prevention (CDC) and Public Health Laboratory Network (PHLN) in Australia (www.health.gov.au/resources/publications/phln-guidance-on-laboratory-testing-for-sars- cov-2-the-virus-that-causes-covid-19). The Xpert® Xpress SARS-CoV-2 POC collection and testing process involves (i) collecting and placing a nasopharyngeal swab (NPS) in a viral transport medium;

  • a minimal number of sample processing steps, such as agitating and standing the sample tube;
  • a 300 µL aliquot is pipetted into a closed cartridge system; and (iv) the detection of amplified viral genetic material (RNA). The cartridge contains a chaotropic sample processing reagent that is mixed with the sample within five minutes of starting the test and commences denaturation. For these types of assays, the WHO considers sample manipulation, and the level of aerosol generation is minimal. The WHO guidelines recommend POC testing, or near-POC testing such as a risk-assessed benchtop workflow without the need for a BSL2 cabinet (WHO interim guidance, 13 March 2020). These protocols have been successfully implemented in Australia, as part of the Aboriginal and Torres Strait Islander Point-of-Care Testing Program since April 2020.

To eliminate any chance of aerosol or droplet generation and thus reduce some of the additional conditions above such as wearing personal protective equipment (PPE), which is in short global supply, immediate viral inactivation prior to specimen processing would be ideal. Whilst various SARS-CoV-2 inactivation protocols have been described, chemical inactivation is most suited to the POC workflow as it does not introduce new equipment or delay processes like heat and/or other inactivation methods. Several commercially available Viral Transport Mediums (VTMs) contain a chemical inactivation ingredient. These include the Primestore® Molecular Transport Medium (MTM) [6], which is a United States Food and Drug Administration (FDA)-registered VTM (USA) that has been demonstrated to effectively inactivate and preserve multiple pathogens, including mycobacterium tuberculosis (MTB) [7] and influenza virus [8], and does not compromise the sensitivity of the GeneXpert platform in the detection of MTB or first-line MTB rifampicin (RIF) resistance (MTB/RIF assay) [9,10]. COPAN™, another VTM, is registered as a non-propagating transport and culture medium with the FDA but does not contain any inactivating agents [11]. To date, there have been nine studies that have evaluated chemical inactivating ingredients and shown effective virucidal activity against SARS-CoV-2 [1220], but to our knowledge there has been no evaluation of commercially available VTMs that could be utilized in an appropriate workflow for community-based molecular POC testing.

The aims of our study were to evaluate the effectiveness of commercially available VTMs; two with the inactivating ingredient guanidine thiocyanate (Primestore® and COPAN™ eNAT) to inactive SARS-CoV-2 virus, and a third VTM without inactivating ingredients (COPAN), alongside traditional disinfectants and heat inactivation. As guanidine thiocyanate is incompatible with bleach, a commonly used cleaning reagent in molecular testing workflows [12], we also evaluated an alternative disinfectant solution (Sterigene®) that is listed by the manufacturer to inactivate coronaviruses in general; there are no data to date that has specifically observed activity against SARS-CoV-2.

1.   Materials and Methods

1.1.   Reagents and Facilities

We utilized the sequenced SARS-CoV-2 clinical viral isolate (VIC001) [21], and permissive Vero E6 cells in culture (immortalized African monkey kidney cells, ATCC Cat# CRL-1586, American Type Culture Collection, Manassas, VA, USA). Two VTMs that contain inactivating ingredients were evaluated: Primestore® MTM (Cat#PS-MTM-3, Longhorn Vaccines and Diagnostics, San Antonio, TX, USA) and COPAN™ eNAT (Cat#6C058N.RUO, COPAN Diagnostics, Murrieta, CA, USA), both containing guanidine thiocyanate (Table 1). We also included (guanidine-containing) control inactivation reagents viral lysis buffer (AVL, Cat#19073, QIAGEN LLC, Hilden, Germany). Two propagation mediums were evaluated relevant to diagnostic processing: (i) COPAN™ Universal Transport Medium (UTM; Cat#350CV, COPAN Diagnostics), which does not contain an inactivating ingredient and is the most commonly used VTM for Xpert® assays, and (ii) the COPAN™ alternative HCY-CV19-UTM (Cat#CY-F003-40, Huachenyang (HCY), Shenzhen Technology Co., Ltd., Shenzhen, China). Two disinfectant methods were assessed, (i) using the chemical solution Sterigene® (Oragene Global, Auckland, New Zealand) at the recommended 10% (v/v) of neat product, and (ii) without chemicals, through the use of heat inactivation. Heat is capable of effectively eliminating SARS-CoV-2 infectivity of 50 mL of cell-free SARS-CoV-2 supernatant incubated at 65 ◦C for 60 min [18]. These conditions were replicated to inactivate virus at the same high-titer viral concentration (0.5 × 107 median tissue culture infectious dose, TCID50/mL) then plated adjacent to the positive control.

The UNSW Institutional Biosafety Committee approved SARS-CoV-2 viral expansion under physical containment level 3 (PC-/BSL-3) biosafety restrictions. All viral infections were performed within class-2 biosafety cabinets within the Kirby Institute PC3 facility under high-efficiency particulate air (HEPA) filtered 75 kpa negative pressure, and full-hooded suits connected with full face mobile support equipment (MSE) personal P3 respirators. All workers within the PC3 were nasal swab PCR SARS-CoV-2 negative prior to experiments and were periodically nasal swabbed and PCR tested to ensure no in facility viral transmission had occurred at any time when working with the virus in containment.

Viral Inactivation Protocols

A standardized protocol from World Health Organization (WHO) guidelines on viral inactivation using reagents was used for validation of titrated chemical compounds with potential virucidal activity [22]. In brief, 0.5 × 106 (low dose) and 0.5 × 107 TCID50/mL (high dose) SARS-CoV-2/VIC001 suspended in 50 µL of minimum essential medium (MEM) were immersed in 200 µL of the “test solution”, immediately diluted at 1:10 dilution using MEM to 1:10,000,000 within 2 min. Vero E6 cells were overlaid with 200 µL of the dilution series and incubated for 72 h.

Independently, BEx method was used to recover remaining viral particles present in each test reagent (Figure S2). This method was previously used to describe virucidal studies for the Ebola pandemic [23] to reduce cytotoxic effects of the reagents used for inactivation. In brief, this method retains viral particles by a filter that allows successive removal of the majority of the inactivating agent and then is replaced by a buffer that is not toxic to cells (buffer exchange) used in downstream viral outgrowth. This increases sensitivity, as higher concentrations of virus may be recovered after exposure to the inactivating agent. As above, 0.5 × 105–7 TCID50/mL of SARS-CoV-2/VIC001 suspended in 50 µL of minimum essential medium (MEM) was immersed in 200 µL of the “test solution”, inverted gently five times and allowed to stand for up to 10 min. Each mixture was overlaid upon a 50 kDa Vivaspin-500 column (Cat#VS0131, Sartorius, Göttingen, Germany), then centrifuged at 12,000× g for 7 min. The mixture was buffer-exchanged using three washes with 500 µL of Dulbecco’s phosphate buffered saline (D-PBS, Gibco Thermofisher Scientific, Waltham, MA, USA). Viral particles remaining in the column were resuspended using 250 µL MEM with 5% fetal bovine serum (FBS). This “neat” suspension was diluted in series (1:5 fold) to a final dilution factor of 1:390,625; this five-fold dilution series was chosen to capture potential loss of product resulting from use of the buffer exchange column. Following dilution, 40 µL of each series were overlaid (in quadruplicate) upon 5000 seeded Vero E6 cells supported by 160 µL MEM per well of cell-culture grade 96-well plates (Cat#353075, Becton Dickinson, Franklin Lakes, NJ, USA). To further increase sensitivity, virions were spun onto the surface of plated cells, using a plate adapted centrifuge for 1200× g for 40 min at room temperature. The cells were washed three times using complete support media, consisting of minimum essential media (MEM) + 5% fetal bovine serum (FBS) and incubated in a humidified atmosphere at 37 ◦C and 5% CO2 for 72 h.

After this time, sensitivity of viable viral detection was further increased by a second viral outgrowth step, where 40 µL was transferred to a second, identical 96-well tissue-culture plate containing 20,000 suspended Vero E6 cells and incubated for a further 48 h. Viral replication for the inoculation plate at 72 h and the transfer plate (after 120 h) were detected via live cell counting in situ, using a 1/10 dilution of NucBlue Live ReadyProbes Reagent (Cat#R37605, Invitrogen, Carlsbad, CA, USA). Detection of SARS-CoV-2 RNA using the Allplex 2019-nCoV diagnostic PCR kit for nasal swabs (Cat#RP10243X, Seegene, Seoul, Korea); (E, RdRp- and N-genes) occurred via quantitative PCR (provided by NSW Health Pathology, POW-Randwick campus), as a sensitive and specific indicator of active viral replication in cell-culture samples [24].

1.2.   Analysis and Statistics

Live cell counts were determined using an inCell-2500HTS analyzer (Cytiva/GE Healthcare, Chicago, IL, USA), by six-field imaging using orange (Brightfield) and blue (NucBlue/Hoescht 37,622 live nuclear stain, Thermofisher Scientific) filters, then stored as text-in-file-format (.tiff) uncompressed images. Viral cytopathic effect was machine-scored through reduction of nuclei counts using inCarta (Cytiva) with pre-determined nuclei and fluorescent threshold settings to enable recognition and counting of cells while accounting for background fluorescent signal. The cell count for each test well was compared to the total counts of uninfected control wells present in each plate, then normalized to 1000 cells per well using formulae generated in Microsoft Excel. Change in positive control nuclear cell count from normalized cell count was used as a measurement to test an effect of media on SARS-CoV-2 cytopathic effect. The median cell count of quadruplicate wells was calculated and compared using a t-test assuming Gaussian distribution (p < 0.05). Measurement of viral titre at 50% TCID50/mL for SARS-CoV-2 infecting Vero E6 cells was calculated using the Spearman and Kärber excel algorithm [25]. Cell counts and PCR Ct values were compiled and tabulated using Prism (GraphPad Holdings LLC, San Diego, CA, USA).

2.   Results

  • 2.1.   VTMs and Reagents with Inactivating Ingredients

The WHO method showed Primestore®, COPAN™ eNAT and the Qiagen viral lysis buffer (AVL), which all contain guanidine thiocyanate to varying degrees, were toxic when applied directly to cells in tissue culture at high concentrations. In two separate experiments, cells were only viable at 72 h of incubation at dilutions of the reagent >1:10,000 dilution (data not shown). A reduction in toxic effect was observed when media was moved across to the transfer plate (diluted by transferring 40 µL to new cells); in this case, viable cells were observed at a 1:1000 dilution of the reagent (Figure 1C). This toxic effect was readily distinguished from SARS-CoV-2-driven cytopathic effect (CPE), based on cellular morphology using Brightfield (light) microscopy and nuclei counts (Figure S1, Column C); this effect generated curve based upon toxicity at high concentrations, which appeared equivalent to viral infectious dose values ranging between 4.46 × 103 TCID50/mL for Primestore® and 2.51 × 105 TCID50/mL for COPAN™ eNAT (due to the inability of the inCarta software to detect nuclei; Table 1, italics with asterisk). There was no additional loss of cell count in the presence or absence of spiked SARS-CoV-2, which was attributed to CPE.

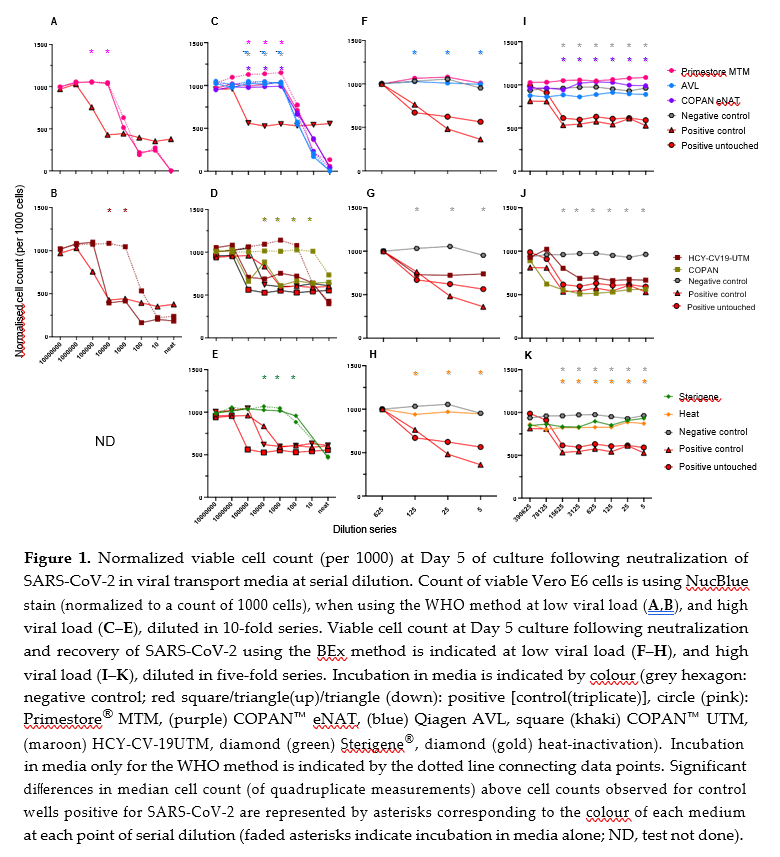

Figure 1A,C, show viral replication and lysis of Vero E6 cells using the WHO method at low or high viral concentrations. Nuclei counts that effectively overlap suggest there is sufficient virucidal activity for these media to inactivate SARS-CoV-2. These inactivation/toxicity data were supported by a lack of detectable SARS-CoV-2 RNA for the MTM buffers and control Qiagen viral lysis buffer. This was the case at all steps in the dilution series, and in the case of positive controls where viral infectivity was observed at up to 4.46 × 106 and 1.41 × 108 TCID50/mL (Table 1), which equates to a >10 fold-reduction in viral infectivity.

The BEx method allows for testing virucidal activity at higher SARS-CoV-2 concentrations by eliminating the cytotoxic chemicals in Primestore® and COPAN™ eNAT MTM reagents from the assay and therefore keeping cells viable. In the presence of SARS-CoV-2 at both low and high starting inoculum, no cell death was observed (Table 1, recorded as “NR” under “molecular test media”). Processing of samples using the buffer exchange method did not reduce SARS-CoV-2 infectivity. Positive control samples spiked into D-PBS at up to 0.5 × 107, washed and resuspended in MEM, indicated CPE at low starting viral load of 4.7 × 103 (dilutions up to 1:625, Figure 1F), and high viral load of 4.35 × 106, recovering cell count at >1:78,125. This indicates both Primestore® and COPAN™ eNat MTM were effective at SARS-CoV-2 inactivation at this concentration (Figure 1I). A positive (untouched) assay control was used to determine if any change in viral infectivity occurred from Vivaspin processing, by adding directly to cells. Overlapping cell counts with the buffer exchanged SARS-CoV-2 (Figure 1I,J; Table 1 BEx assay controls) indicate virus was efficiently recovered from the Vivaspin column when tested. Therefore, a minimum 3.9     105-fold reduction in SARS-CoV-2 viral load was observed using the BEx method when incubated in Primestore® MTM and COPAN™ eNAT, and the buffer-exchange (BEx) assay was capable of reporting virucidal activity.

3.2. VTM without Inactivating Ingredient

Using the WHO method, COPAN™ viral transport medium (VTM) was less toxic to cells (Figure 1D, dotted line). Spiking of SARS-CoV-2 into COPAN™ at 0.5 × 106 TCID/mL indicated CPE at 1:10,000 dilution, and TCID50 was calculated at up to 4.46 × 105 and 2.51 × 106 TCID50/mL at Day 3 (data not shown) and at Day 5. Positive SARS-CoV-2 PCR in the COPAN test well up to the last dilution with observed CPE (Table 1). HCY-CV-19 UTM support media was less-tolerated by cells, requiring further dilution (Figure 1D, dotted line). When SARS-CoV-2 was spiked into HCY-CV-19 UTM, CPE was consistently observed at low viral load (Figure 1B) and high viral load, calculated at 1.41 × 107 and 4.46 × 108 TCID50/mL at Day 3 (data not shown) and Day 5, respectively (Figure 1D; Table 1, viral transport media). The negative control (mock infection with PBS) was the only dilution series without the presence of CPE.

3.3. Sterilizing Solution (Sterigene)

Sterigene® was toxic to the cells in culture at a similar dilutions; the calculated toxicity for cells cultured in Sterigene® spiked with SARS-CoV-2 was equivalent to viral CPE at 1.41 × 103, and 7.92 × 102 TCID50/mL for Day 3 and 5; these values were lower than TCID50 values for Sterigene® reagent alone (data not shown), supporting evidence for complete virucidal activity against SARS-CoV-2. These results were confirmed by no PCR amplification from culture medium. It was difficult to pass Sterigene® over the Vivaspin column using the BEx method, requiring an additional 10 min (i.e., 20 min at 12,000× g) for the last two buffer exchange centrifugation steps to entirely remove the reagent from the void volume. Nevertheless, cells were viable at all steps of the dilution curve, including when the reagent was spiked with up to 0.5 × 107 TCID50/mL of SARS-CoV-2 in both the inoculation plate at up to 72 h, and the transfer plate at up to 120 h (Figure 1K).

3.4. Heat Inactivation

Heat-inactivation was included in these experiments as a processing control. No CPE was evident at any point in the titration (for the inoculum plate and 120h for the transfer plate), compared to the positive control, which was detected at up to 1.41 × 108 TCID50/mL (Figure 1H,K). These results were validated by a lack of detectable viral amplification, indicating greater than 3.9 × 105-fold reduction in SARS-CoV-2 viral load using when incubated in complete MEM support media and incubated at 65 ◦C for 1 h.


These experiments demonstrate highly concentrated SARS-CoV-2 virus was eliminated following a short-term (2-min) suspension in the PrimeStore® MTM and COPAN™ eNAT (including the Qiagen viral lysis buffer AVL) but not in COPAN™ or HCY-CV-19 UTM, which were only moderately cytotoxic for Vero E6 cells in culture. Secondly, we were able to demonstrate that PrimeStore® MTM and COPAN™ eNAT completely inactivated SARS-CoV-2 at the highest titre that was available in the facility, which was orders of magnitude higher than clinical samples [26]. These observations were achieved through the use of a buffer exchange protocol that enabled permissive cells to remain viable despite the potential cytotoxicity of the viral inactivating agents. Similarly, heat treatment for 1 h at 65 ◦C eliminated viral replication, with no virus being detected in culture supernatant at the last observed well with CPE (1:1000), for the inoculation or transfer plate. We also demonstrated effective inactivation of SARS-CoV-2 using laboratory grade disinfectant (Sterigene®). Conversely, COPAN™ UTM and HCY-CV19 UTM in the presence of viable cells supported viral infectivity at or greater than levels observed in the positive controls.

Recent publications have provided conflicting evidence for [12], and against [18], the ability of viral lysis buffers that contain guanidine thiocyanate to deactivate SARS-CoV-2, specifically including the Qiagen AVL buffer that we used in our experiments. It is clear from our results that there was inactivation of SARS-CoV-2 by Qiagen AVL at up to a minimum 5 log10, at 2 min incubation, and up to 7 log10 at 10 min incubation at the highest available viral titre to infect permissive cells. Differences in virucidal activity for this buffer may result from methodological differences in inactivation and/or detection methods. Pastorino et al. [18] adopted a standardized analytical virucidal testing methodology (Analytice, reference document number: ANFOR NF EN 14476 + A2), which resulted in detection of a positive SARS-CoV-2 signal, following addition of bovine-serum albumin (BSA at 3 g/L), ethanol or Triton X-100; these inactivation steps were also prior to culture of supernatant for up to 10 days post-inactivation.
One consideration when using media that contain guanidine thiocyanate in molecular workflows is their well-documented incompatibility with hypochlorite solutions (i.e., bleach). Solutions containing 70% ethanol (v/V) are recommended for cleaning and decontamination of spills when handling SARS-CoV-2 [15]. However, situations may arise where the supply or use of these disinfectant solutions may be difficult (e.g., cleaning large surface areas) and other reagents are chemically incompatible (i.e., release of toxic fumes from cleaning chemicals that contain ammonia or sulfates).

Here, we demonstrate that Sterigene® (a mixture of halogenated tertiary amine and organic salts,
polymeric biguanide hydrochloride surface active agent’s corrosion inhibitor, chelating agents,stabilising agents and demineralized water) diluted to the working concentration (10% v/v) is a suitable alternative for cleaning SARS-CoV-2 processing facilities.

A strength of our study is using the BEx methodology, and its reproducibility with automated collection of CPE data through machine counting of nuclear staining. The advantage of the BEx method over the standard WHO methodology is largely due to the capacity to remove reagents that may interfere with cell substrate viability, resulting in reduced ability of any remaining active virus to infect viable cells. This has advantages over the WHO method, as it has greater sensitivity in subsequent viral outgrowth and detection. Yet, the short coming to BEx is the time taken to remove the inactivating solution from the viral culture and minimum inactivation times greater than 10 min. In contrast, the WHO method enables observation of shorter inactivation time, as the rapid dilution of the virus from the inactivation solution can enable determination of minimal inactivation times within 2 min. Using both the WHO and BEx methodologies, we could determine not only the minimal inactivation time but also could increase the stringency of the viral detection.

Limitations to the methodologies applied here are as follows: (i) the chemical or reagent used needs to be compatible with the Vivaspin polyethersulfone membrane, due to additional spin time being required for Sterigene® buffer exchange, and (ii) reagents applied directly using the WHO method are themselves toxic to cells. While it is crucial to have a reagent-only control, a higher starting viral inoculum may also be required to observe a readout of viral pathogenic effect, over that of reagent cytotoxicity. Establishing a dilution series at a 10-fold, rather than 5-fold, dilution may also be more appropriate in this instance, or if the transfer plate were to be incubated for more than 72 h.
We had originally intended for this publication to evaluate the effectiveness of three VTM to inactivate SARS-CoV-2 (Primestore®, COPAN™ eNAT and HCY-CV19-UTM). It was our understanding from the advertising material and an invoice from the company that the HCY-CV19-UTM (Cat# CY-F003-40) provided as the part of the iclean VTM kit (by Shenzhen Technology Co., Ltd.) was capable of inactivating SARS-CoV-2. Our results demonstrate that HCY-CV19-UTM shows absolutely no sign of viral inactivation, unlike our observations of the other VTMs tested, and should not be used for the purpose of increasing operator safety. From our results, HCY-CV19-VTM could in fact decrease operator safety if there is a false belief it does inactive the virus and appropriate barriers are not implemented.

Our findings provide strong evidence that PrimeStore® MTM and COPAN™ eNAT eliminated SARS-CoV-2 infectivity at very high concentration and within 2 min while conserving the integrity of the viral nucleic acid for RT-PCR testing [27]. Integration of these MTMs into POC testing protocols will eliminate any aerosol generation of SARS-CoV-2 and could reduce the need for additional conditions set by WHO, such as additional PPE, which are in limited supply. An important consideration when using media that contain guanidine compounds is incompatibility with hypochlorite solutions (bleach). Therefore, it is recommended that 70% alcohol solutions or Sterigene be used as a replacement for decontamination of spills when handling SARS-CoV-2.

Supplementary Materials: The following are available online at http://www.mdpi.com/1999-4915/12/11/1208/s1, Figure S1: Images collected using the InCell 2500 HTS to count nuclei using fluorescent nuclei stain (NucBlue) and cell morphology in unstained (Brightfield) images (contrast increased in Brightfield by 80% to approximate pre-process in cell image acquisition), at 1:1000, and 1:625 dilution (experiment plate row C) for the WHO, and BEx methods, respectively). Cells are represented to demonstrate toxic effect of media (d3) and final nuclei count (d5), represented in SARS-CoV-2 spiked culture (solid line) or media only (hashed line), Figure S2: Schematic of SARS-CoV-2 inactivation buffer exchange (BEx) protocol using viral transport medium (VTM).

Author Contributions: D.v.B., C.M.L.M. and S.T. prepared experimental design, executed the inactivation experiments and provided manuscript input. G.W., A.O.S., A.A., M.Y. and A.C. provided support to experimental readout. S.G.B., A.D.K., T.L.A., A.V., D.W., W.R., P.C., J.K. and R.G. provided design, manuscript input and support to align the experimental work with P.C. testing guidelines. All authors have read and agreed to the published version of the manuscript.

Funding: This research received no external funding.
Acknowledgments: We would like to acknowledge VIDRL (Julian Druce) for providing the VeroE6 cell line and clinical isolate SARS-CoV-2/VIC00121. We would like to acknowledge Leon McNally (Sydney Pathology) and Andrew Gia (St George and Sutherland Clinical School) for providing transport mediums for testing.

Conflicts of Interest: The authors declare no conflict of interest.
