Copan WASPLab automation significantly reduces incubation times and allows earlier culture readings
Objective: The aim was to evaluate whether laboratory automation (inoculation and automated incubation combined with timely defined high-resolution digital imaging) may help reduce the time required to obtain reliable culture analysis results.
Methods: We compared the results obtained by WASPLab automation against WASP-based automated inoculation coupled to conventional incubation and manual diagnostic on 1294 clinical samples (483 for the derivation set and 811 for the independent validation set) that included urine, genital tract and nonsterile site specimens, as well as ESwabs for screening of methicillin-resistant Staphylococcus aureus (MRSA), methicillin-sensitive Staphylococcus aureus (MSSA), extended-spectrum beta-lactamases (ESBLs) and carbapenemase-producing Enterobacteriaceae (CPE).We used sequential routine specimens referred to the bacteriology laboratory at Geneva University Hospitals between October 2018 and March 2019.
Results: The detection sensitivity of MRSA and MSSA at 18 hr on WASPLab was 100% (95% confidence interval [CI], 94.48e100.00%). The detection sensitivity of ESBL and CPE at 16 hr on WASPLab was 100% (95% confidence interval [CI], 94.87% to 100.00%). For urine specimens, the similarity was 79% (295/375) between 18 hr and 24 hr of incubation on WASPLab. For genital tract and non-sterile site specimens, the similarity between 16 hr and 28 hr of incubation on WASPLab were 26% (72/281) and 77% (123/159) respectively. Thus, 28 hr was defined as the final incubation time on WASPLab for genital tract and nonsterile site specimens.
Conclusions: The results of this study show that WASPLab automation enables a reduction of the culture reading time for all specimens tested without affecting performances. Implementing the established and duly validated incubation times will allow appropriate laboratory workflows for improved efficiency to be built. A. Cherkaoui, Clin Microbiol Infect 2019;25:1430.e5e1430.e12
© 2019 European Society of Clinical Microbiology and Infectious Diseases. Published by Elsevier Ltd. All rights reserved.
Over the last decade, laboratory automation has improved productivity, traceability and quality in clinical chemistry, molecular biology, immunology and haematology laboratories [1,2]. In addition, automation has significantly reduced the time required to obtain the analysis results (i.e. the turn-around time, TAT) . Thediversity of clinical specimens and container types, the complexity of the analytical procedures and the variety of the diagnostic methods constituted major hurdles that impaired automation in the clinical microbiology laboratory. However, within less than a decade, the introduction of matrix-assisted laser desorption/ionization time-of-flight (MALDI-TOF) mass spectrometry (MS) for the identification of bacteria, mycobacteria and fungi has fundamentally modified the well-established diagnostic methods in routine microbiology to the point where MALDI-TOF has become the reference standard for microbial identification [4e6]. Nowadays, two automated instrument systems are currently available for clinical specimen streaking; inoculated media are loaded on conveyors for transfer between instruments and automated incubators where cultures are read with high-resolution digital imaging at pre-defined times.Work Cell Automation (WCA) and Total Lab Automation (TLA) has been developed by BD Kiestra (Drachten, The Netherlands), while WASPLab has been developed by Copan WASP srl, (Brescia, Italy). These systems are built around fundamental techniques used in the clinical microbiology laboratory, namely growing bacterial colonies on agar media plates. New features are now available such as the pre-sorted segregation of agar plates based on colony counts with growth and no growth discrimination, as well as automated image analysis to interpret chromogenic media plate results (e.g.WASPLab software is capable of reading chromogenic plates to detect methicillin-resistant Staphylococcus aureus (MRSA) with high sensitivity) [7,8]. Additionally, both automation system manufacturers claim that bigger technological breakthroughs are coming soon.
Rapid microbiology diagnosis associated with antimicrobial stewardship has a perceptible effect on patient management and care . One of the most important issues in clinical microbiology is therefore the rapid identification of critical antibiotic-resistant pathogens that impose infection control procedures, such as MRSA, vancomycin-resistant Enterococcus (VRE), extendedspectrum beta-lactamases (ESBL) and carbapenemase-producing Enterobacteriaceae (CPE). Moreover, the need for rapid microbiology results in defining infections that can be better managed, using narrow spectrum drugs or early oral administration, has spurred the development of products and concepts which are integrated in automated instrument systems.
In this study, we assessed whether the use of WASPLab automation (automated inoculation, and automated incubation combined with timely defined high-resolution digital imaging) may help reduce the time required to obtain reliable culture results.
Material and methods
This study was conducted at Geneva University Hospitals, a Swiss tertiary care centre with 1920 beds, and about 63 000 yearly admissions. The hours of operation of our clinical bacteriology laboratory are from 7.30 to 22.00 from Monday to Friday, 7.30 to 17.00 on Saturday and 7.30 to 13.00 on Sunday in addition to the on call service until 22.00 during the weekend.
In order to identify the shortest incubation times for agar media plates with optimal analytical performances, we performed time series image acquisitions on WASPLab several hours before and up to the traditional incubation duration specific for each specimen type. We analysed selective chromogenic plates for the screening-ESwabs for MRSA, methicillin-sensitive Staphylococcus aureus (MSSA), extended-spectrum beta-lactamases (ESBLs) and carbapenemase producing Enterobacteriaceae (CPE). We also assessed urine, and genital tract and non-sterile site specimens to differentiate the presence of pathogens from that of a normal flora. We compared the results obtained byWASPLab against WASP-based inoculation coupled to conventional incubation and manual diagnostic, which represents the routinemethod used in our laboratory. Culturemedia analysis for each workflow was performed by trained clinical microbiologists blinded to the results obtained by the other method. Results were compared and optimal imaging times were defined in the derivation cohort. The assessment between the two methods was then performed on an independent validation cohort, again using routine clinical samples sequentially referred to the bacteriology laboratory at Geneva University Hospitals between October 2018 and March 2019. In the derivation set, the incubation period onWASPLabwas assessed at different incubation time points covering the full traditional incubation period, specific for each analysis and specimen type included in this study. For each incubation time assessed on WASPLab, several high-resolution digital images were taken under different light and exposure conditions according to the manufacturer’s instructions, and analysed by the first author (a clinicalmicrobiologist) and one expert medical laboratory technologist. Both had been trained by COPAN’s application specialist. For the independent validation set, we performed the same analysis as for the derivation set but only on the incubation time points and imaging conditions thatwere selected for their optimal analytical performances.
Conventional diagnostic work-up
The identification of bacterial and yeast colonies was performed by matrix-assisted laser desorption ionization time-of-flight mass
spectrometry (MALDI-TOF MS; compass, Bruker Daltonics, Bremen, Germany) according to the manufacturer’s instructions. The presence of ESBL was confirmed by double-disc synergy tests (DDST20 and DDST30). The presence of a carbapenemase was confirmed by the Eazyplex® SuperBug CRE system (Amplex Biosystems GmbH, Giessen, Germany). Confirmation of MRSA and MSSA strains was performed by a previously published qPCR assay targeting femA and mecA . Table 1 details the incubation protocols, the agar media plates used for each sample type and the number of samples included in the derivation set and in the independent validation set.
Nasal and inguinal/perineal screening-ESwabs for MRSA and MSSA
As depicted in Table 2, all the 14 positive clinical specimens (12 MRSA and two MSSA) had already been detected at 18 hr, with the specific colour on CHROMID® MRSA (BioMerieux, Geneva, Switzerland) or SaSelect medium for MSSA (BioRad, Fribourg, Switzerland) when the chromogenic media were incubated on
WASPLab. No difference was observed between 18 hr, 22 hr and 48 hr for both the presence and the semi-quantification of MSSA or MRSA. Among the 148 specimens used for the derivation set, 89% (132/148) were negative using the two compared methods. In two cases, the specimens were validated as MSSA negative by the manual method at either 18 hr, 24 hr or 48 hr. In contrast, when SaSelect medium was incubated on WASPLab, these two cases showed a few colonies had already been detected with the specific colour at 18 hr. MSSAwas confirmed positive by qPCR (yielding only a femA positive signal).
Independent validation dataset
The cut-off point for MRSA and MSSA screening ESwabs on WASPLab was defined as 18 hr using the derivation set. This incubation time point was validated on another 181 clinical samples, of which 13% (24/181) were MRSA positive and 13% (24/181) were MSSA positive. All the positive specimens were detected at 18 hr on WASPLab, except one sample validated as MSSA negative using the manual method but a few colonies were detected at 18 hr on WASPLab with the specific colour on the SaSelect medium (Table 2). This discrepancy can be explained by the fact that the SaSelect
medium is highly sensitive to light exposure, favouring WASPLab, which allows immediate incubation after streaking. The detection sensitivity of MRSA and MSSA at 18 hr on WASPLab compared with the manual method for the 329 specimens included in the derivation and the validation sets was 100% (95% CI 94.48e100.00%).
Rectal screening ESwabs for ESBL producer and CPE
The incubation period was assessed at 16 hr, 18 hr, 22 h and 48 hr on WASPLab. Among the 84 clinical samples included in the derivation set, 62% (52/84) were ESBL and CPE negative using the two compared methods. At 16 hr on WASPLab, 29 samples were detected ESBL positive and three CPE positive (Table 3), which reached optimal detection sensitivity (100%/95% CI 89.11e100.00%) compared with the manual method.
Independent validation dataset
We selected 16 hr as the defined incubation period onWASPLab.
Sixty-six independent clinical specimens were included in the validation set, of which 28 samples were ESBL and CPE negative, 30 specimens were ESBL positive and eight specimens were CPE positive (Table 3). For the derivation set, all the 38 ESBL- and CPEpositive specimens were detected at 16 hr on WASPLab. The detection sensitivity of ESBL and CPE at 16 hr on WASPLab compared with the manual method for the 150 specimens included in the derivation and the validation sets was 100% (95% CI, 94.87e100.00%).
Bacteriological examination of urine specimens

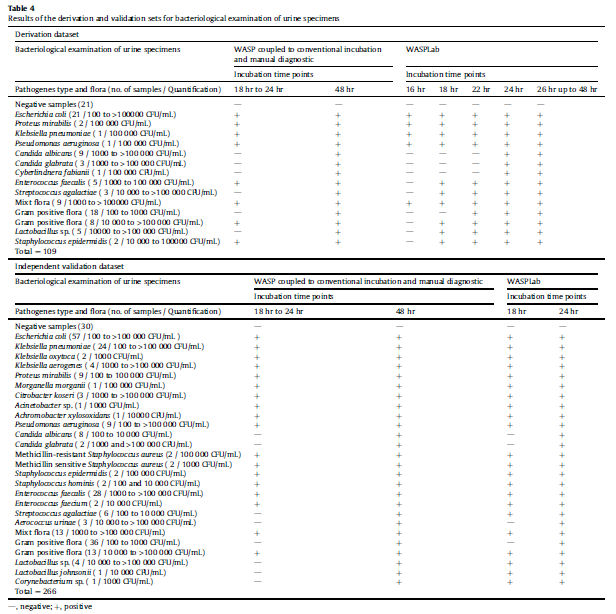

Among the 109 urine samples included in the derivation set,19% (21/109) were negative by the two compared methods. The incubation period for urine samples was explored on WASPLab at 11 different incubation time points (from 16 hr up to 48 hr). In 24 samples, the common Enterobacteriaceae uropathogens and Pseudomonas aeruginosa were detected on CHROMID® CPS® Elite at 16 hr. In 13 samples, it would have been necessary to wait until 24 hr of incubation on CHROMID® CPS® Elite to have sufficient growth for Candida and Cyberlindnera fabianii detection. The optimal incubation time to have sufficient growth of Gram positive bacteria, including uncommon uropathogens and flora, was determined as 18 hr (Table 4).
Independent validation dataset
We defined on WASPLab for CHROMID® CPS® Elite an intermediate incubation time at 18 hr and final incubation period at 24 hr. At 18 hr on WASPLab, among the 266 specimens included in the independent validation set, 38% (100/266) were positive for common Enterobacteriaceae uropathogens, 24% (63/266) were positive for various Gram-positive bacteria including uncommon uropathogens and flora, and 4% (11/266) were positive for Pseudomonas aeruginosa, Acinetobacter sp. or Achromobacter xylosoxidans. In contrast, 24 hr was necessary for CHROMID® CPS® Elite in order to identify Candida albicans, Candida glabrata and Aerococcus urinae (Table 4). Therefore, 24 hr is validated as the cut-off point providing optimal analytical performances.
Bacteriological examination of genital tract specimens
The incubation period on WASPLab was divided into several incubation time points (from 16 hr up to 48 hr). Among the 92 samples analysed in the derivation set, 62% (57/92) were positive with only vaginal flora as early as 18 hr. Three per cent (3/92) were positive for MSSA, 1% (1/92) for MRSA, 7% (6/92) for Enterobacteriaceae, 4% (4/92) for S. agalactiae and 5% (5/92) for E. faecalis. All these micro-organisms showed sufficient growth at 16 hr. One sample was positive for Gardnerella vaginalis with sufficient growth at 20 hr. However, the incubation period had to be prolonged up to 28 hr to permit sufficient growth for Candida spp. (Table 5).
Independent validation dataset
We defined an intermediate incubation time on WASPLab of 16 hr and the final incubation period of 28 hr for the 189 specimens included in the validation set. Except for Candida spp. and Gardnerella vaginalis, all potential pathogens were identified at 16 hr, indicating the importance of this intermediate incubation period, to provide early diagnostic information. However, we had to extend the incubation period to 28 hr in order to permit the reliable identification of Candida spp. and other pathogens like Gardnerella vaginalis (Table 5).
Bacteriological examination of non-sterile site specimens
Non-sterile site specimens included in this study were conjunctival ESwab (6%, 10/159), ear ESwab (16%, 25/159) and superficial ESwab specimens (78%, 124/159).
The incubation period on WASPLab was divided into several incubation time points (from 16 hr up to 72 hr). At 16 hr, among the

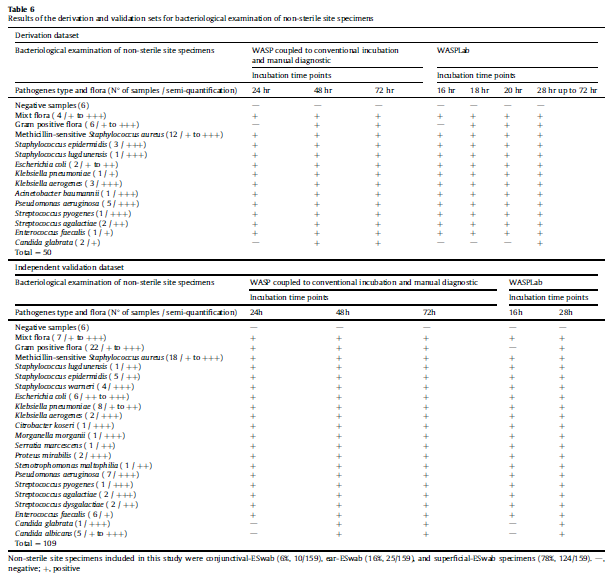

50 specimens included in the derivation set, 12% (6/50) were negative, 24% (12/50) were positive for MSSA, 16% (8/50) were positive for other common Gram-positive pathogens, 12% (6/50) were positive for Enterobacteriaceae and 12% (6/50) were positive for P. aeruginosa and Acinetobacter baumannii (Table 6). Two samples were positive for Candida glabrata with sufficient growth for reliable identification at 28 hr.
Independent validation dataset
As for the genital tract, we have chosen an intermediate incubation time at 16 hr and a final incubation period at 28 hr. In the validation set we included 109 specimens. As depicted in Table 6, a panel of 10 potential pathogens was identified with sufficient growth at the intermediate incubation time without any difference with the final traditional incubation period. The detection of Candida glabrata was validated at 28 hr.

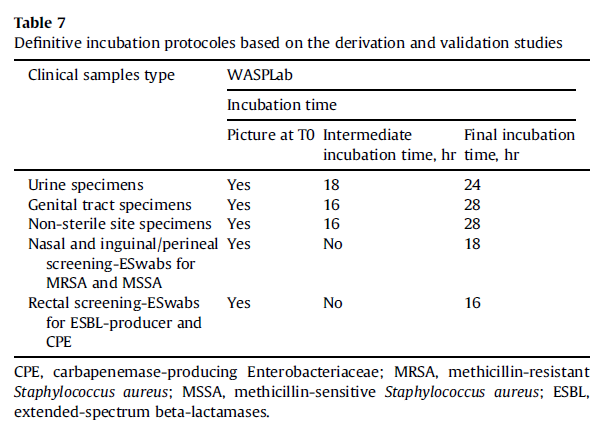

The purpose of this study was to assess if the use of WASPLab, and in particular that of the automated incubators coupled to digital imaging, permitted to shorten the time required for obtaining reliable culture analysis results. As summarized in Table 7, the use of WASPLab allows reducing the length of the incubation time for urine, genital tract and non-sterile site specimens, as well as that for screening for MRSA, MSSA, ESBL and CPE without affecting the analytical performances.
In a recent study, Bielli et al.  found a similarity of 93% when comparing the urine specimens tested by WASPLab at 16 hr and 24 hr of incubation. In contrast, our derivation study found only 50% (55/109) similarity between those incubation times. Additionally, for all the urine specimens tested the similarity was 79% (295/375) between 18 hr and 24 hr on WASPLab by using CHROMID® CPS® Elite. The selection of a 24 hr incubation time as the final incubation period for urine specimens was dictated by the willingness to improve the detection yield of urine specimens that are potentially contaminated prior to culture, which contributes to limit overdiagnosis of urinary tract infections. For genital tract specimens, the similarity was 31% (72/230) for detecting bacteria between 16 hr and 28 hr of incubation on WASPLab. This similarity decreases to 26% (72/281) when we include Candida spp., whose slower growth requires more time to be detected. For non-sterile site specimens, the similarity was 77% (123/159) between 16 hr and 28 hr of incubation on WASPLab. Finally, a unique 16 hr incubation time is sufficient for the screening-ESwabs for ESBL-producer and CPE, and
18 hr incubation time for the screening-ESwabs for MRSA, which enables rapid identification of critical antibiotic-resistant pathogens for adjusting infection control procedures.
Clinical microbiology laboratories rely upon highly trained and skilled personnel to process a substantial amount of clinical specimens with various complex procedures, a range of sampling devices and a variety of diagnostic methods. The advent of new technologies emphasizes the need to automate the repetitive tasks that do not require specific skills of trained medical microbiology technologists [1,3,12]. The impact of automation to improve laboratory workflows and efficiency in clinical microbiology laboratories was highlighted in different recent publications [13e18]. As demonstrated in this study, the time required to obtain culture results is reduced by automated incubation combined with highresolution digital imaging. To realize the maximum time gain of reduced incubation times, the clinical microbiology laboratory would need to broaden its operating hours, and ideally shift to a 24/7 model. This schedule would ensure that the images of the early incubation times can be interpreted without any delay. Hours of operating should be adjusted, in each centre, to ideally match laboratory resources with the decisions that can actually be taken by the medical staff working during night or weekend shifts. Defined and duly validated incubation times will allow building appropriate laboratory workflows for improved efficiency.
One limitation of this study pertains to the relatively small number of some bacterial species analysed as well as the overall number of samples studied, yet the specimens analysed in this study provide a range of pathogens and flora conditions.
The important benefits of the use of automated incubators combined with digital imaging is that they permit continuous and automatic monitoring of the cultured media plates, favouring optimal bacterial growth. The high-resolution digital images taken under different light and exposure conditions open the potential of customized reading times to improve the detection of the early growth. Shortening the turn-around times could positively improve the patient’s outcome. This implies providing earlier medically actionable results to the treating physician (e.g. switches from empiric to targeted drug regimens). In this study, the automation was found to reduce the incubation times for all specimens tested without compromising the analytical performances. Using defined and duly validated incubation times will allow building appropriate laboratory workflows, balancing laboratory resources and medical needs in each centre, for improved efficiency. Further studies are now needed to investigate the real impact of reduced time to results on the early adjustments of antimicrobial regimen.
